Robust and Reliable SGBS Gigabit Switches — Powerful. Durable. Simple.

Effortless Push-Button Management for Portable Entertainment Networks




  • Powerful, rugged switches suitable for high volume, multicast, real-time show data

  • Unique SGBS LCD Control Panel provides simple push-button access to configuration options most useful for advanced entertainment networks.

  • ProPlex “Blue Box” rugged tour-ready enclosures. Built for extreme conditions. Shock-mounted circuitry. Advanced thermal management.

  • Compatible with a wide range of entertainment-specific protocols, including AES67, ArtNet, Dante, GreenGo, HippoNet, HogNet, Livewire, MA-Net 2/3, Q-LAN, RAVENNA, RDMNet, sACN, and more!

  • PoE and non-PoE versions available

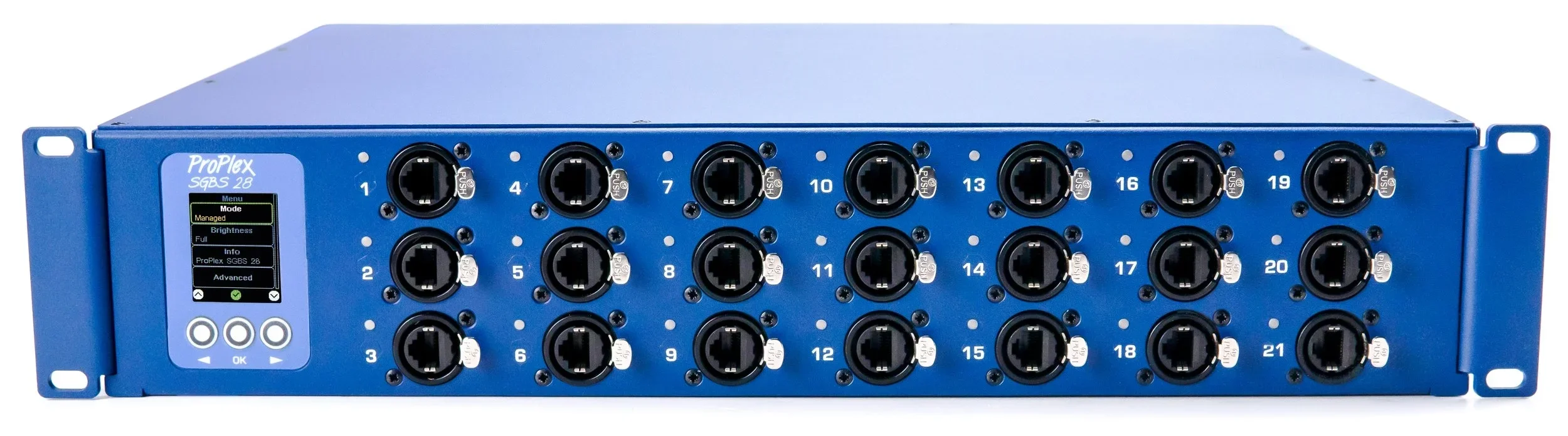

  • 21 front Gigabit Ethernet ports with tour-grade EtherCON connectors

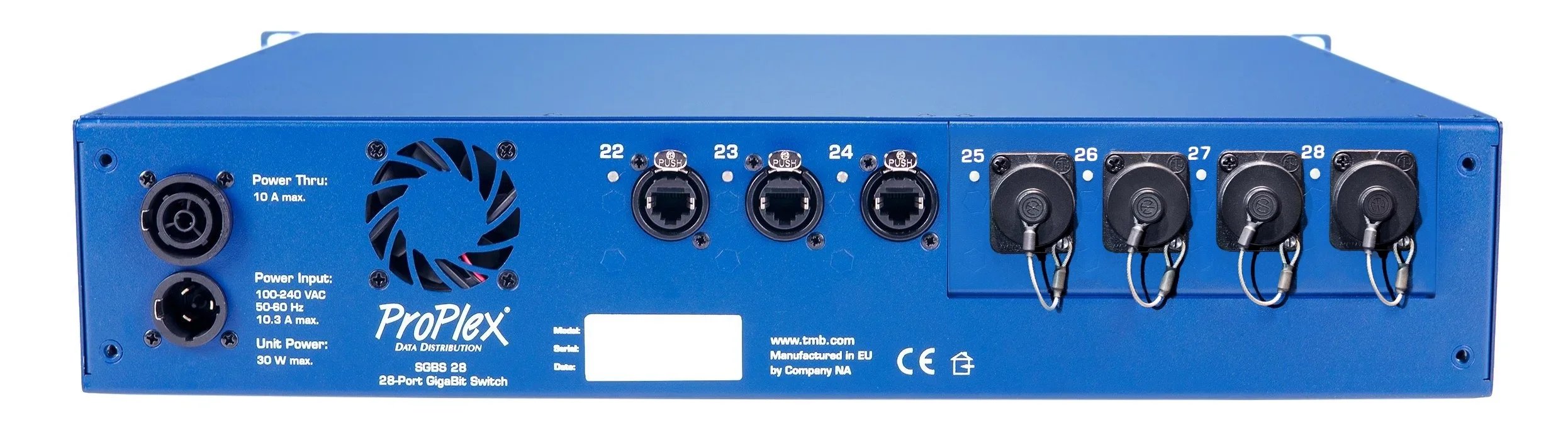

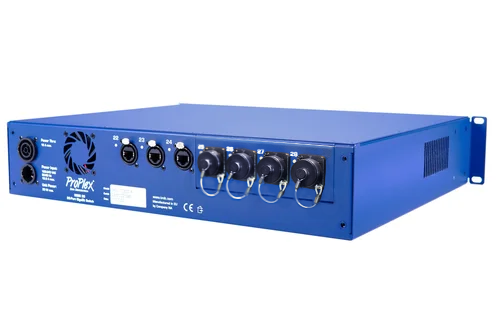

  • 7 rear Ethernet ports, available with combinations of: EtherCON, Duplex LC, OpticalCON QUAD, OpticalCON DUO connectors.

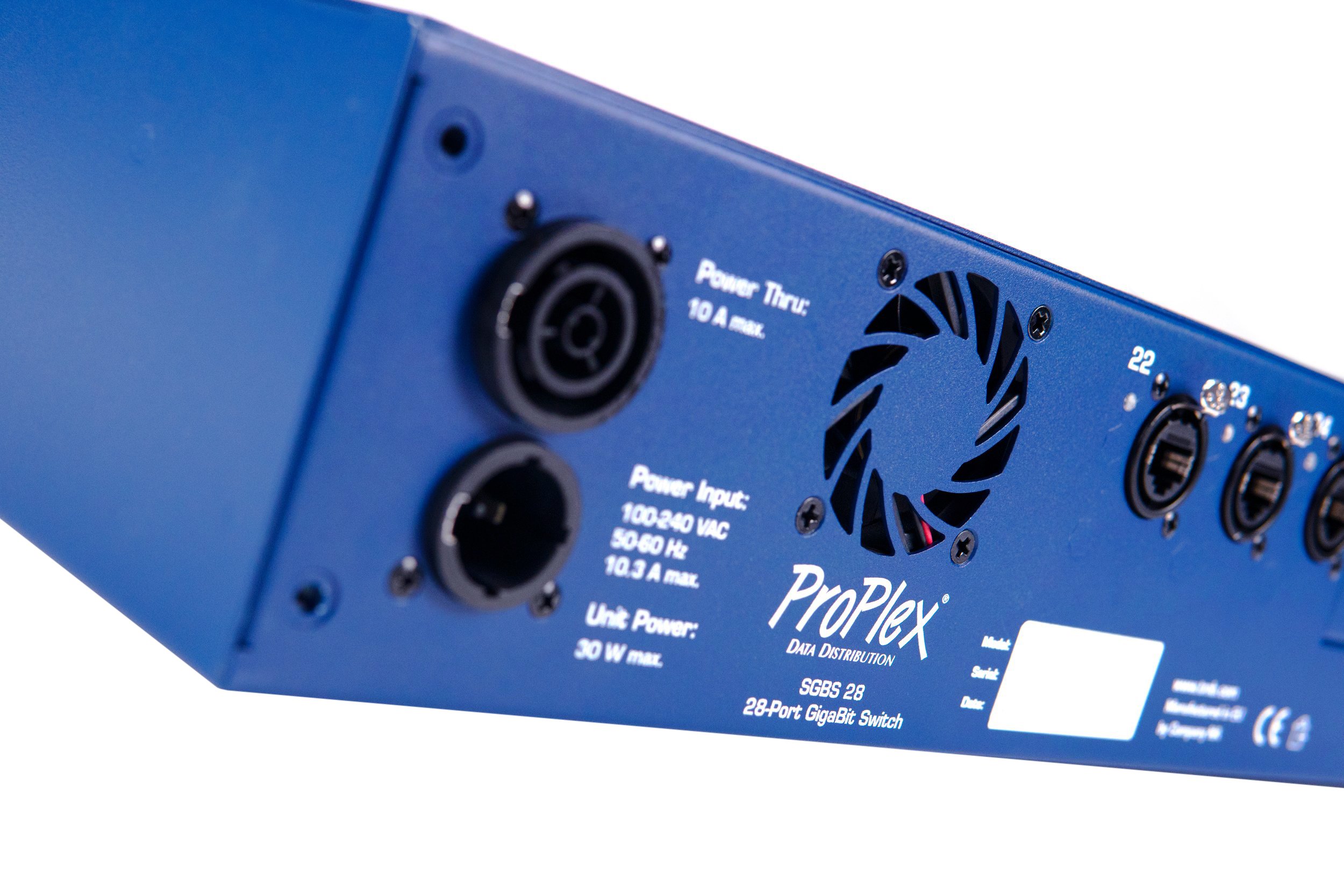

  • 100-240 VAC, 50-60 Hz with PowerCON TRUE1 in and thru








LCD CONTROL PANEL

Everything you need at your fingertips! Easily switch configurations with simple button presses.

Switch management without the support calls!
